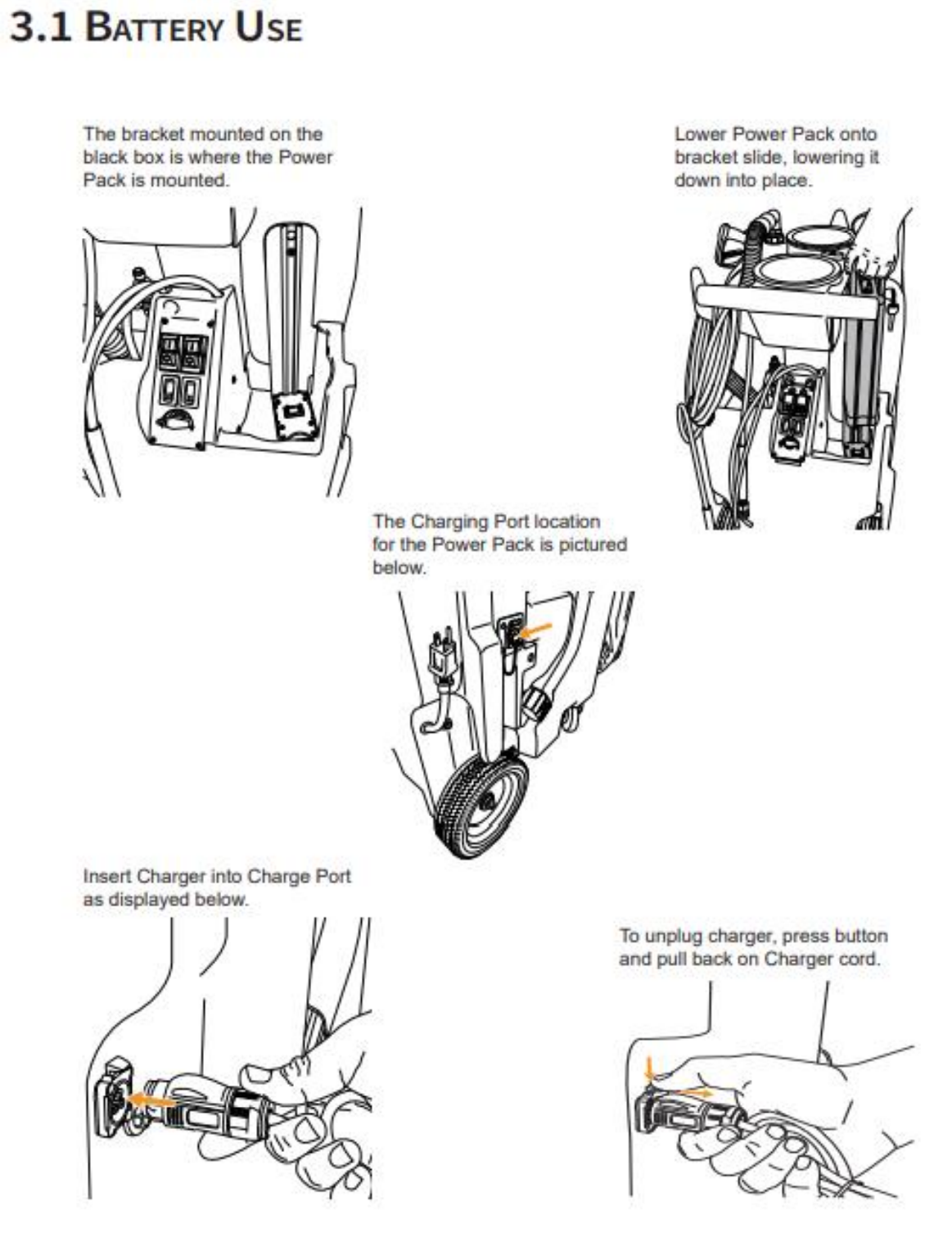

How to mount, charge and test Batteries

How to test Vacuum and Pump motors

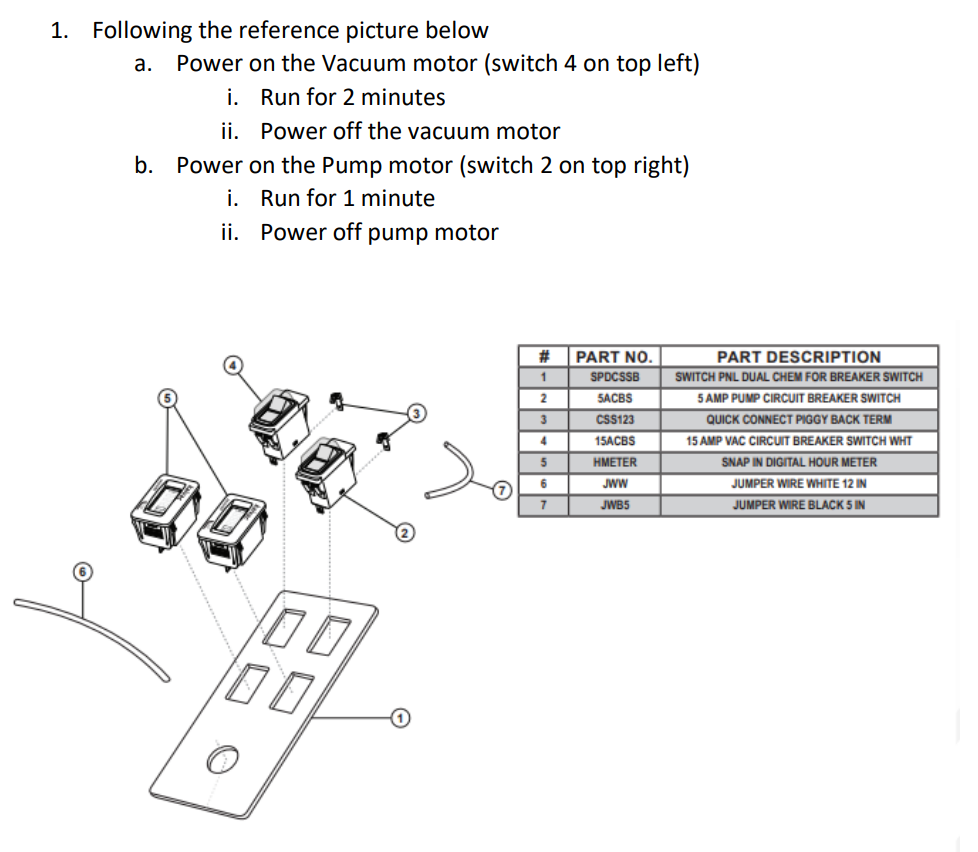

1. Following the reference picture below
   1. Power on the Vacuum motor (switch 4 on top left)
      1. Run for 2 minutes
      2. Power off the vacuum motor
   2. Power on the Pump motor (switch 2 on top right)
      1. Run for 1 minute
      2. Power off pump motor

Verification of ARMOR device communication

1. Wait 10-12 minutes after running Vacuum and Pump tests above.
   1. Browse to https://check.armordata.io
   2. Select your device by:
      1. Enter your Asset Serial number
         1. Serial number is located on the outside of the unit near the battery (easier to see with battery removed).
      2. Check nearby
         1. This will show a list of assets near you. Drop down the list and choose the serial number of the unit you are testing.
         2. The next page should show you a RunTime event in “green” with a value ~3 minutes
            1. This page can be viewed while running the test multiple times if needed
