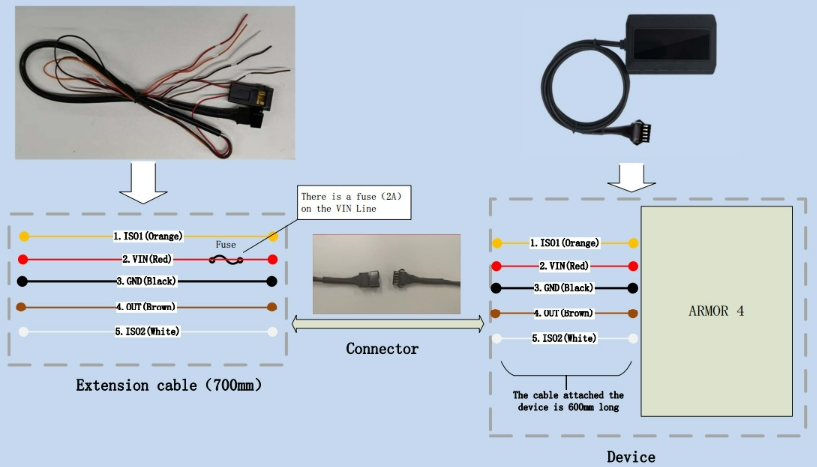

The standard 5-wire adapter cable come with the following pinouts.
| Type | Color | Parameters |
| VIN (Voltage In/Power) | Red | 9-90V Power Source |
| GND | Black | Common Ground |
| OUT | Brown | Open drain, Max 150mA |
| ISO1 | Orange | Active High - Max 70V Input |
| ISO2 | White | Max 90V Input, Ignition |
